#2654962 - 01/14/15 08:18 AM Re: The stand construction thread [Re: mate stubb]
Rusty Mike Offline
Gold Member

Registered: 10/05/10
Posts: 726
Loc: Central NJ
Fixed - I'm a moron!

I also included the URL for more pictures if anyone is interested.
_________________________
Mike from Central NJ
Tools: Ten fingers, two feet, middle-age brain, questionable judgement and taste
Toys: More gear than I could afford when I had talent and did this for a living

Top
KC Island
#2654999 - 01/14/15 10:11 AM Re: The stand construction thread [Re: Rusty Mike]
mate stubb Offline
Grand Poobah of the Trebuchet
10k Club

Registered: 10/26/03
Posts: 15214
Nice clean design!
_________________________
Moe
---
Jazzooo: "Yes, there is an appeal to having your entire catalog on a few little pieces of dark plastic that are easily lost under the seat."

http://www.hotrodmotm.com

Top
#2664444 - 02/11/15 06:21 AM Re: The stand construction thread [Re: mate stubb]
DavidD Offline
Senior Member

Registered: 01/03/10
Posts: 51
Loc: Copenhagen, Denmark
Hi everyone.

I guess this is my first 'real' post on the forum. My name is David and I have written a short introduction of myself in the Introductions thread.

This thread has been a great inspiration! Keyboard stands and figuring out how best to stack my boards are a somewhat guilty pleasure of mine, so it's been fun to see what and how you guys are doing it.

This is not a stand construction per se, but it is however an upgrade to my stand - a K&M Spider Pro. Up until now I have been using the Spider Pro in conjunction with a tabletop style stand in an L-shape, placing my rack and pedal board in the 90 degree 'corner' of the L. This took up a lot of space on stage and I never felt comfortable with playing in the L-shape.

A couple of weeks ago my local music shop sold me an extra set of arms for the Spider Pro for approx. 20 USD. I figured that I might as well give it a try and see if I could fit all three boards on the Spider Pro. I play standing up so the bottom board needs to be relatively high.

And it worked! I know that the picture isn't that great, but it does give you an idea of how close I have been able to stack the three keyboards, while still having access to the knobs on the Nord Lead in the middle. The sliders on the PX-5S come out under the left end of the Lead, so they are easy to, well - slide. I primarily use two presets on the Casio (rhodes and wurlitzer), so I don't need great access to the Stage Setting buttons on the right.

Furthermore I have been able to fit my pedalboard with effects and a sustain pedal under the legs of the Spider Pro - and my rack I place standing up next to me. The result is that I use up approx. 50% less space on stage + I find it much easier playing with the three boards stacked like this instead of the L-shape.

Success! smile

_________________________
David Dyrholm - Copenhagen.

Rhodes MK II, Fender Hot Rod Deluxe, Moog Sub 37, Roland Juno 6, Casio PX-5S, MBP w. Mainstage (+ lots of fx pedals).

Endorsed by Casio.

Top
#2664482 - 02/11/15 08:24 AM Re: The stand construction thread [Re: DavidD]
ABECK Offline
MP Hall of Fame Member

Registered: 01/22/01
Posts: 2506
Loc: Framingham,MA,UNITED STATES
Looks good. I can't tell - is the new set an additional angled set, or straight, like the bottom ones.

Top
#2664510 - 02/11/15 09:47 AM Re: The stand construction thread [Re: ABECK]
DavidD Offline
Senior Member

Registered: 01/03/10
Posts: 51
Loc: Copenhagen, Denmark
Originally Posted By: ABECK
Looks good. I can't tell - is the new set an additional angled set, or straight, like the bottom ones.


Thanks. The set in the middle is straight like the one on the bottom. It makes it easier to stack them closer together.

I don't think I would have been able to stack all three keyboards if the two top sets were angled, it would take up to much space and 'push' the bottom board to far down for me to be able to play it without problems. Again, I'm playing standing - if one were to sit it could be done with two angled sets above the straight bottom one.
_________________________
David Dyrholm - Copenhagen.

Rhodes MK II, Fender Hot Rod Deluxe, Moog Sub 37, Roland Juno 6, Casio PX-5S, MBP w. Mainstage (+ lots of fx pedals).

Endorsed by Casio.

Top
#2664559 - 02/11/15 12:05 PM Re: The stand construction thread [Re: mate stubb]
MathOfInsects Offline
MP Hall of Fame Member

Registered: 02/04/15
Posts: 2504
Loc: California

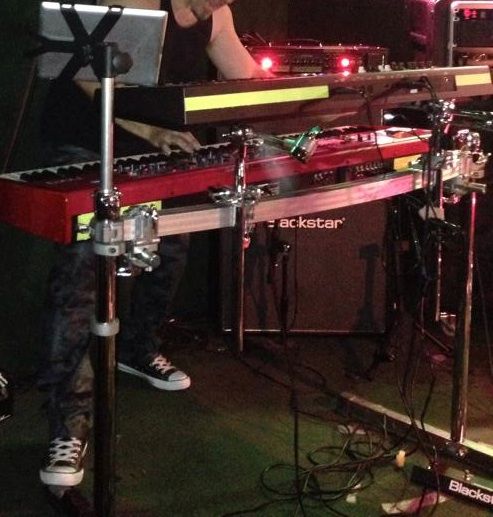

I repurposed a Pearl drum rack, and it's become the ideal keyboard stand. I cut and added two aluminum electrical pipes to hold the lower board, and use cymbal booms/arms (coated in plastic) for the upper. I can add a third board above that by using two more cymbal booms.

I also inserted aluminum piping into the stand legs as a place to add gig-specific items--my ipad clamp, or a small personal monitor, or my stand light, or even the set list.

All the levels are fully height adjustable, and it breaks down in about a second and a half--just pop the quicklocks on the cross bar and it's in three easy pieces.

The nice thing is, more stuff you load onto the stand itself, the more stable it gets.

I'm going to try to embed a couple of photos, but it's my first time doing so on this forum, so we'll see.

This was my proof-of-concept photo when I was tinkering in the garage:



Here are some early photos of the thing in use; I switched the angle of the crossbar after this to line up with the back of the lower board:

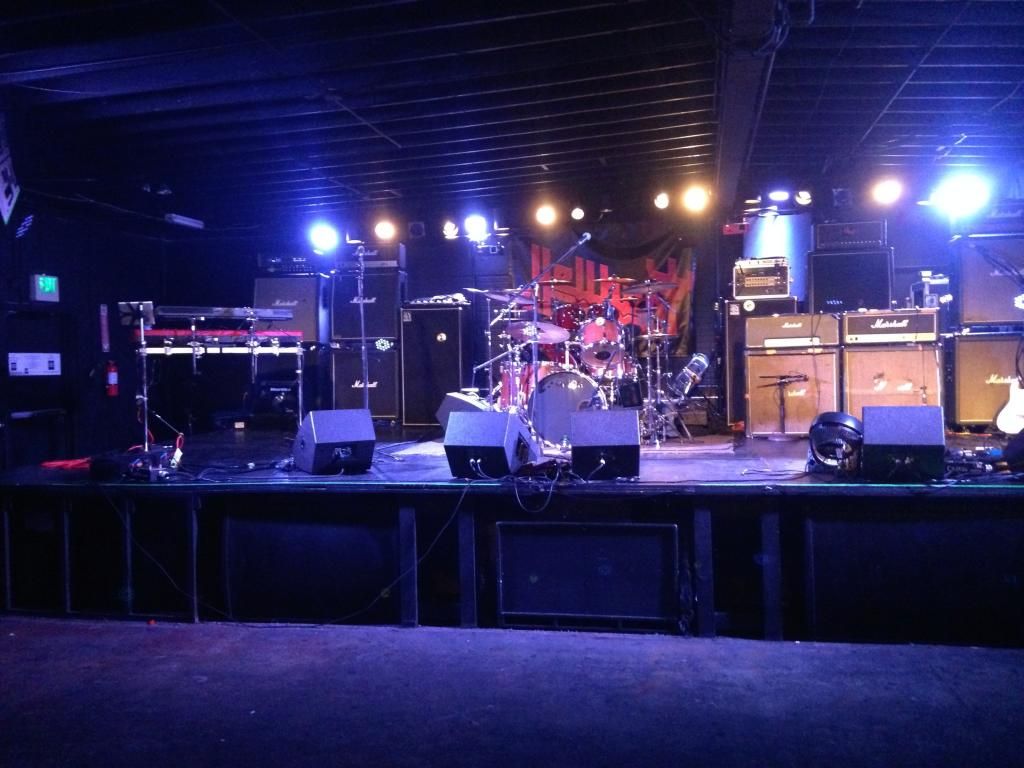

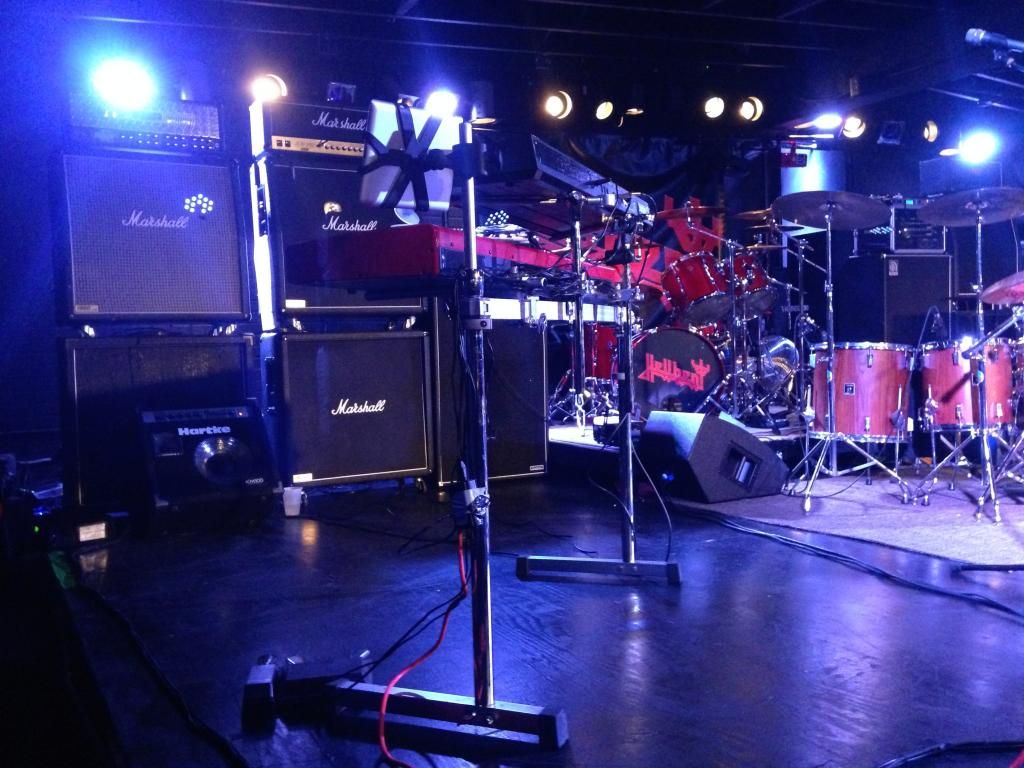

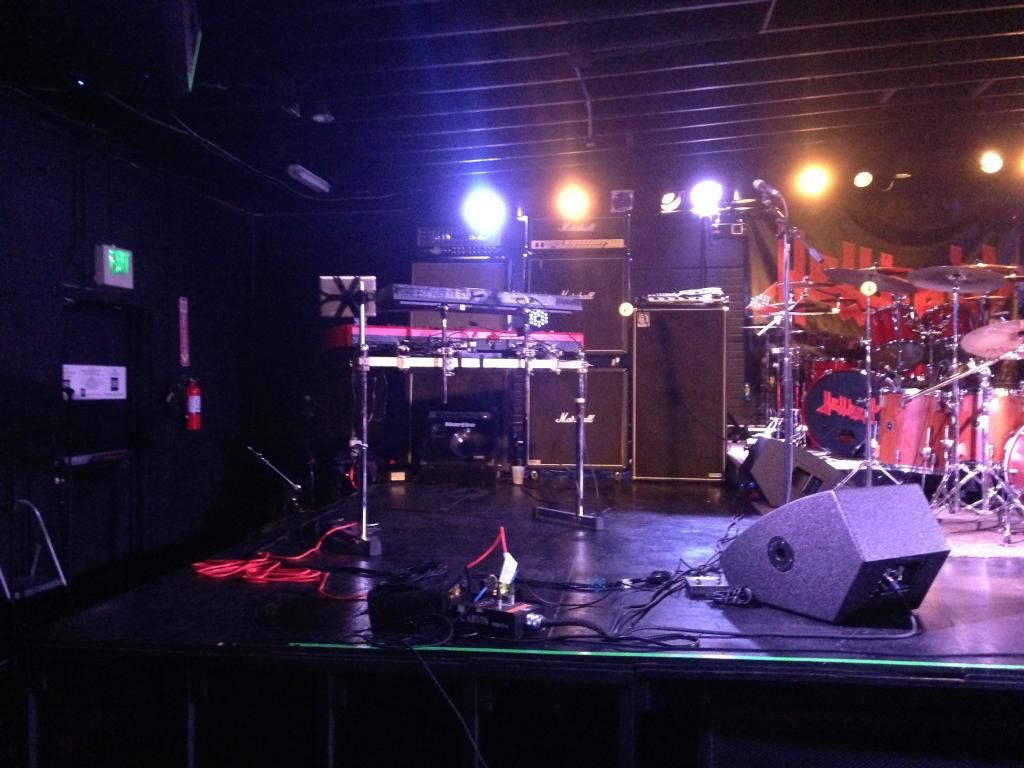

And here's an action shot taken my someone in the audience at some gig, I can't remember what or where (cropped by me to leave out my ugly mug):





Top
#2664560 - 02/11/15 12:13 PM Re: The stand construction thread [Re: MathOfInsects]
EscapeRocks Offline
MP Hall of Fame Member

Registered: 08/12/03
Posts: 4300
Loc: Texas
Very nice

twothumbs
_________________________
David
Gig Rig: Roland FA-08 | Arturia Keylab 61 Black Edition | Mainstage |


Top
#2664567 - 02/11/15 12:45 PM Re: The stand construction thread [Re: EscapeRocks]
mate stubb Offline
Grand Poobah of the Trebuchet
10k Club

Registered: 10/26/03
Posts: 15214
Holy crap, I haven't seen a backline that tall since the '70s. Loud?? Very nice stand setup, BTW.


As far as 3 tiers go - I have found that I prefer the middle keyboard to be straight, the bottom one angled UP toward me, and the top one angled down.
_________________________
Moe
---
Jazzooo: "Yes, there is an appeal to having your entire catalog on a few little pieces of dark plastic that are easily lost under the seat."

http://www.hotrodmotm.com

Top
#2664646 - 02/11/15 05:13 PM Re: The stand construction thread [Re: mate stubb]
MathOfInsects Offline
MP Hall of Fame Member

Registered: 02/04/15
Posts: 2504
Loc: California
I think it might have been one of those guitar legend summit things, so everyone was waving their Marshalls around like genitals.

Top
#2664677 - 02/11/15 08:15 PM Re: The stand construction thread [Re: MathOfInsects]
rickp Offline
Senior Member

Registered: 11/17/14
Posts: 244
Very cool use of Pearl components . . . you'll have both drummers and keyboard players envious . . .

Gibraltar sure seems to be making more of a move from drum hardware into the keyboard sector: Gibraltar Project Center.

Maybe there's something we can learn from drummers after all.
_________________________
Kawai KG-2D / Yamaha CP33 S90ES P105 MX49 CP4 CLP635 / Hammond SK1 / Korg R3
QSC K8s K10s K12s KSubs / Soundcraft Ui24 / SSv3 / GK MB112 MB115 & MB210 w Neo410

Top
#2664868 - 02/12/15 02:12 PM Re: The stand construction thread [Re: rickp]
MathOfInsects Offline
MP Hall of Fame Member

Registered: 02/04/15
Posts: 2504
Loc: California
Thanks, Rick. Yeah, if you think about what a drummer needs--fast, light, sturdy, portable, customizable, adjustable on the fly--it makes sense there'd be some overlap.

Wanna really geek out on homemade equipment pr0n, though? For organ gigs (about half of what I do, maybe a bit more), I use a foot-switch for the Leslie (sim), like many of us here. Out of habit/necessity, I've always triggered it with my left heel. Whenever I've put it at my toe, even on the left, I've reflexively treated it as a sustain pedal at least a few times during the night. (Too many nights when I was younger sitting at the piano facing out to the audience and using my left foot for the sustain, I guess.)

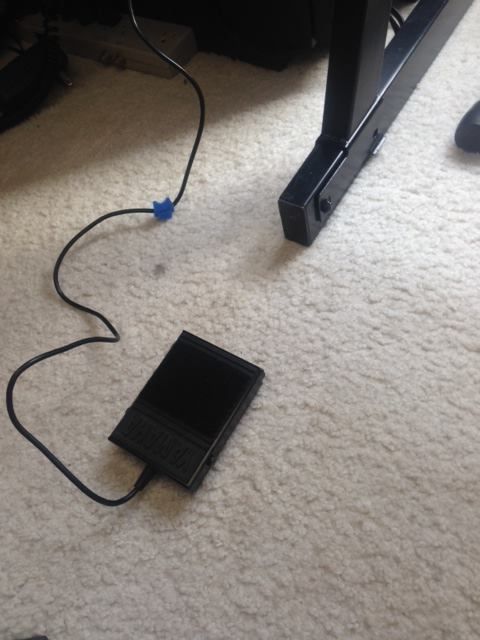

So it sits facing backward, at roughly the distance my heel will be if my foot is on that stand leg (different stand).



But I have to admit that I miss it sometimes. Then I have to either stomp around a bit or look down to make sure I'm lined up right. I hate that.

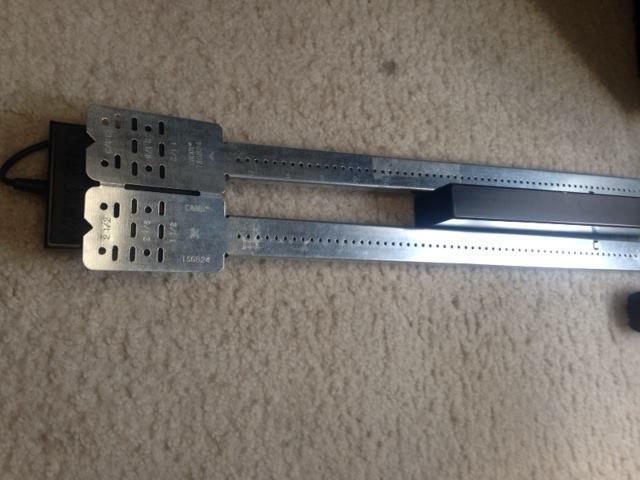

So I came up with this. It's just a bit of electrical duct bracing.

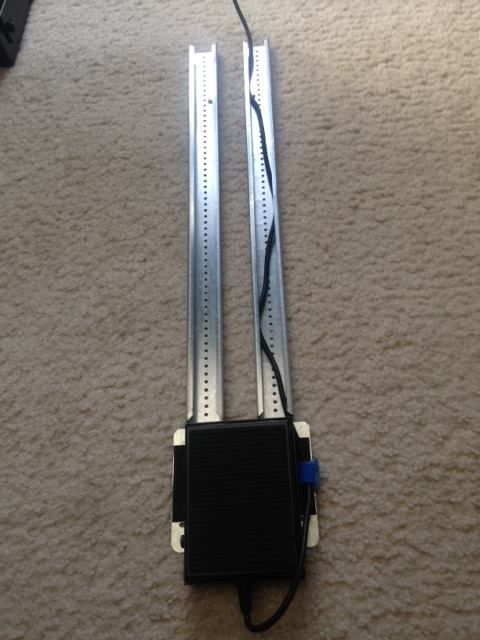

I velcro the pedal to the bottom. It even has a little channel for the cord to keep it out of the way.



It straddles the leg of that stand (the one I use for most organ gigs), and stays in place solely because it's ever so slightly too small to fit around the stand.



Now, wherever I hit that bracket, even if I mostly miss or hit close to the stand leg or just get one of the two braces, the pedal engages. As long as there's pressure anywhere along the way, the rotor switches speeds.



And voila, problem solved.

Top
#2665082 - 02/13/15 01:46 PM Re: The stand construction thread [Re: MathOfInsects]
rickzjamm Offline
Gold Member

Registered: 11/05/13
Posts: 644
CLEVER!!!
_________________________
Plan your work & work your plan.

Top
#2667798 - 02/24/15 12:42 AM Re: The stand construction thread [Re: rickzjamm]
MathOfInsects Offline
MP Hall of Fame Member

Registered: 02/04/15
Posts: 2504
Loc: California
I knew I had these somewhere. More of the drum-turned-keyboard stand:







_________________________
"

Top
#2667947 - 02/24/15 01:01 PM Re: The stand construction thread [Re: MathOfInsects]
rickzjamm Offline
Gold Member

Registered: 11/05/13
Posts: 644
MathOfInsects, looks cool but isn't it heavy foe daily set up & tear down?
_________________________
Plan your work & work your plan.

Top
#2667951 - 02/24/15 01:24 PM Re: The stand construction thread [Re: rickzjamm]
MathOfInsects Offline
MP Hall of Fame Member

Registered: 02/04/15
Posts: 2504
Loc: California
It's aluminum, light as can be. Setup and tear down are literally a second or two each, shorter than my "real" stands. All I do is pop the cross bar into (or out of) the quick-releases on the legs.

In terms of ease and adjustability/customizability, it's my favorite stand. But I only bring it to large-stage gigs, since the one factor I can't control on it is the footprint. Once there's any negotiation for space on a stage, it's a needless hog.

Top
#2669507 - 03/02/15 08:38 PM Re: The stand construction thread [Re: MathOfInsects]
Pat Azzarello Offline
Gold Member

Registered: 08/11/01
Posts: 897
Loc: WA,UNITED STATES
I’ve been following this thread and seen some cool ideas.

I rearrranged my studio last fall to give me some dedicated space for editing and other “non-keyboard” work (including tasks that turn my studio into a work-cave, not just a music-cave). This translated into me moving my main keyboard (a QS8) onto one side of the room, and my Numa organ onto the other. While it’s very much like a 70’s era live keyboard surround, they’re too far away from each other to do my Keith Emerson impersonation.

On my main desk I have a small keyboard controller (Line6 KB37) that I can use for limited performance).

One thing I’ve always been challenged with is the setup working for each of the distinct jobs I perform at the main (large) keyboard, including:
•Performance/Recording: Focused on playing. Need some way to run transport controls, select tracks, and minimal editing (usually through controllers).
•Composing / Arranging / Orchestration: I do this by hand, and eventually translate it into Finale. This requires a music desk, and has always been the most ignored portion of my studio since I couldn’t come up with a design that had the appropriate footprint and worksurface that I could deal with. I modeled this after a grand piano, with a “scoring” desk attached (see picture). BTW – I’ve never been able to use Finale fast enough to capture ideas, so I’ve given up, but it’s a great tool to share and archive.
Programming / Gig Preparation: This ranges from having a place to put a module, iPad, or other controller above the QS8, to a full keyboard.


I think what inspired me was a Korg keyboard from about 10 years ago (M3 maybe) that had a programmer / display module that could slide one way or the other. To accommodate all of the needs above I decided to steal the idea of having the “modules” slide on some steel rods. I’ll use conduit as it’s really sturdy but not as heavy as steel pipe. The modules will ride on trucks (built using a friend’s 3D printer) and can be swapped out as needed.

The original sketch has a music stand, but I’ll probably have a modules. The conduit and modules will take the rear half of the case. I didn’t build them in because I’m not yet sure what the right height, distance, etc. will be (thus I’m calling it a prototype).

This past weekend I took the first step and built the main keyboard surround with a friend, Mike Day, in his woodshop. It looks surprisingly like a cutdown B3 shell. It’s got 3 sides, a base, and will sit on a keyboard/DJ table for stability.

Eventually (if I ever move from prototype phase to “furniture” phase) I’d probably build nicer legs that match the décor. Here’s the rendering I did in Sketchup:


This past weekend I took the first step and built the main keyboard surround with a friend, Mike Day, in his woodshop. It looks surprisingly like a cutdown B3 shell. It's got 3 sides, a base, and will sit on a keyboard/DJ table for stability.

Eventually (if I ever move from prototype phase to "furniture" phase) I'd probably build nicer legs that match the decor.

The conduit and modules will take the rear half of the case. I didn't build them in because I'm not yet sure what the right height, distance, etc. will be (thus I'm calling it a prototype).




Top
#2728752 - 10/18/15 08:47 PM Re: The stand construction thread [Re: Pat Azzarello]
Adam Burgess Offline
Senior Member

Registered: 01/31/06
Posts: 249

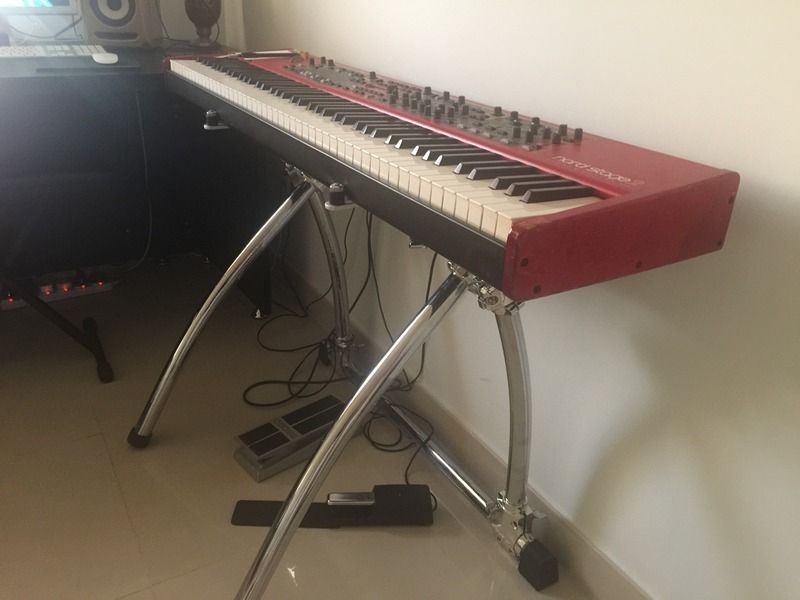

Quick re-purpose for my Gibraltar stuff. Got enough bits spare to fashion something to take out, I think...



I thought correctly! Got a nice whole stupidly high standing height stand from the remaining bits. :-) They're both only single tier, obviously, but suiting me at the moment living without my Kronos :-( Never got a pic before leaving my apartment today...


Edited by Adam Burgess (10/19/15 01:47 AM)

Top
#2878706 - 09/12/17 03:44 PM Re: The stand construction thread [Re: Adam Burgess]
OB Dave Offline
Gold Member

Registered: 04/25/09
Posts: 847
Loc: San Diego CA, US
Zombie thread alert!

OK, so for the past few years I've been gigging with a Stage 2 and an SK-1, and neither one wants to be the bottom keyboard, each having a bunch of controls on top. So I added a sliding upper tier to my K&M stand to remedy that issue. It didn't take long to get used to having the upper keyboard move if you applied rearward pressure.

Fast forward to now, and I just pulled the trigger on a Mojo 61. Sounds ballsy as hell. So far I like it a lot. It also has a nice blank area on top, and while I've always been used to having the piano keyboard on bottom, I thought I'd try doing something other than the sliding tier thing. These brackets were much easier to weld up than the crazy slidey things. They fit nicely into the stock upper tier receptacles.




This allows me to set the front edge of the Nord right on top of the Mojo, and the new brackets support the rear of the Nord. The Nord keyboard is a little bit of a reach but still manageable from a seated position. It will take some getting used to, but then so did the sliding thing. I also welded up a different mast to put the iPad clip on. That fits into a K&M accessory receptacle.





While I was at it, I dealt with my missing foot. These K&M stands have adjustable feet, which is a threaded rod with a small ball at the end, and a plastic foot with a cup that fits over the ball and pivots. Problem is these plastic cups keeps falling off. I've been lucky to find the cup several times, but one finally got away from me. Rather than re-order a replacement from Germany - which I'd be sure to lose again eventually - I decided to fabricate something else. I found these plastic spheres at a hardware store. The K&M stand uses a metric (8mm x 1.25) thread, and the spheres have brass inserts that are threaded using Freedom Units. I decided to brute force it, and bought some 8mm bolts, filled the brass insert with JB Weld, and then stripped the bolts in as far as I could, and then sawed the heads off the bolts so they could be threaded into the metric threads on the bottom of each keyboard leg. None of this process was very pretty but I think it'll work.


Top
#2878709 - 09/12/17 03:57 PM Re: The stand construction thread [Re: OB Dave]
Michael Wright Offline
MP Hall of Fame Member

Registered: 01/05/12
Posts: 2654
I love my new 42" laptop. w00t
_________________________
ignore noise
Website
Mike

Top
#2878710 - 09/12/17 03:59 PM Re: The stand construction thread [Re: OB Dave]
mate stubb Offline
Grand Poobah of the Trebuchet
10k Club

Registered: 10/26/03
Posts: 15214
Good job! I really should learn to weld some time.
_________________________
Moe
---
Jazzooo: "Yes, there is an appeal to having your entire catalog on a few little pieces of dark plastic that are easily lost under the seat."

http://www.hotrodmotm.com

Top
#2878716 - 09/12/17 04:15 PM Re: The stand construction thread [Re: mate stubb]
Dglavko Offline
Gold Member

Registered: 10/16/08
Posts: 654
Loc: Toronto, Ontario, Canada
Nice! I'm digging it.
Piano on top is not sacrilegious when you thing of wurlis on top of a b3.
I've done the same as you with my numa1 or mojo 2 manual underneath.
Not quite as sturdy as yours mind you.

Top
#2878721 - 09/12/17 04:36 PM Re: The stand construction thread [Re: mate stubb]
OB Dave Offline
Gold Member

Registered: 04/25/09
Posts: 847
Loc: San Diego CA, US
Originally Posted By: mate stubb
Good job! I really should learn to weld some time.
You really should! It's fun and very satisfying, and would go very nicely with your excellent woodworking skills. And unlike woodworking where you often have to wait for glue to set, welding is much more instant-gratification. You only need to wait for the material to cool off to test it out. And steel is super cheap right now.

In the past few years I bought a mig welder and a sewing machine, and learned how to use them both. Even with my rudimentary skills, they've been immensely useful. I can't count the number of random projects that I suddenly had solutions for.

Top
